ICP-OES Spectrometer SPECTRO Arcos MultiView

  • Elemental Analysis

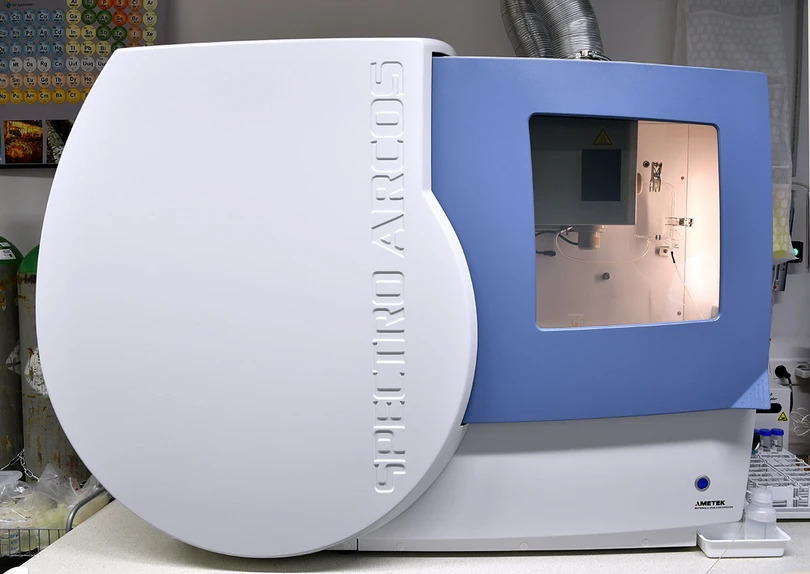

Image of ICP-OES Spectrometer SPECTRO Arcos MultiView

The Spectro ARCOS MultiView (AMETEK Materials Analysis Division) is an optical emission spectrometer with true radial or axial observation of inductively coupled plasma, enabling both heavy matrix and trace analysis with detection limits in the 10-2 - 10-7 mg/kg range according to the sensitivity of individual elements. Optical instrument in Paschen-Runge mounting enables simultaneous record of the spectrum in the wavelength range of 130 to 770 nm or processing of fast transient signal. The spectrometer is equipped with a robust generator operating in the power range of 500 - 2000 W. In the presence of another element in addition to the expected one, it can be additionally identified and determined without having to perform a new measurement.
