Bruker Avance III™ HD 500 MHz

  • NMR Spectroscopy

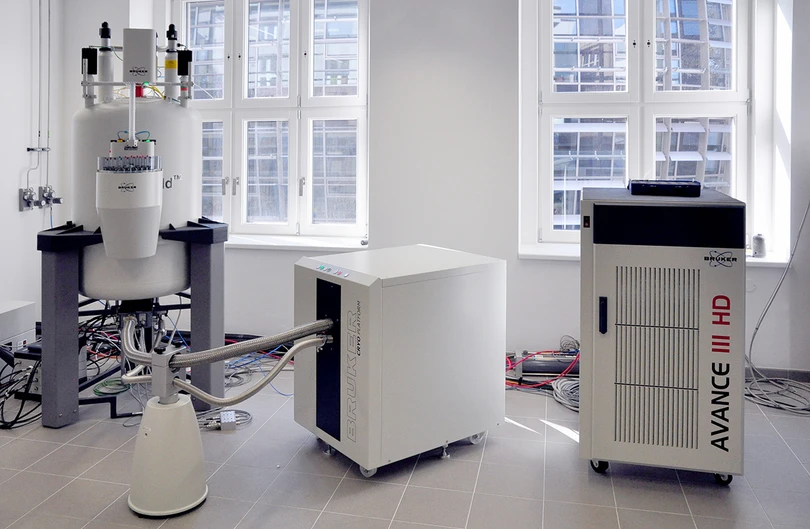

Image of Bruker Avance III™ HD 500 MHz

The 500 MHz spectrometer equipped with a 5 mm wide helium-cooled probe and an automatic 24-sample converter. It is used in structural analysis of small molecules.

Technical specification

Magnet
Superconducting 500 MHz, UltraShield™
Console
Avance III HD 500, three channels, BOSS III (36 magnetic field homogenity corrections), BSMS 2, amplifiers BLAX2H 300/100 and BLAX 300
Bruker Cryoplatform
1H and BB channels cooled
Temperature unit
BSVT, BCU 05
Probeheads
Inverse triple resonance cryo-probe probe with ATM module (5 mm TXI 1H/13C/15N/D Z/GRD), broad-band cryo-probe probe with ATM module (5 mm CPBBO BB-1H/19F/15N/D Z/GRD), inverse quadruple resonance probe (5 mm QXI 1H/15N/13C/31P/D Z-GRD), broad-band probe with ATM module (5 mm BBO-1H/D Z-GRD), quadruple inverse microprobe (2.5 mm QXI 1H/15N/13C/31P/D Z-GRD), broad-band microprobe (2.5 mm BBO-1H/D Z-GRD)
Workstation
Linux CentOS release 5.11, NMR software Topspin 3.2 pl 6
Sample handling
automatic sample changer SampleCase for 24 samples

Location
