Bruker Avance III™ HD 400 MHz

  • NMR Spectroscopy

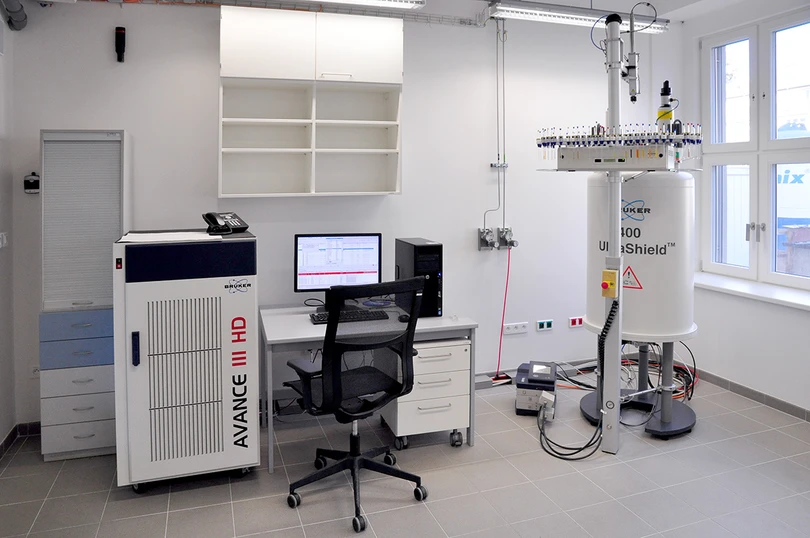

Image of Bruker Avance III™ HD 400 MHz

The second 400 MHz NMR spectrometer designed for self-service measurement in the liquid phase is equipped with a wideband 5 mm probe and an automatic 120 sample changer.

Technical specification

Magnet
Superconducting 400 MHz, UltraShield™
Console
Avance III 400, two channels, BOSS III (36 magnetic field homogenity corrections), BSMS 2, amplifier BLA2B
Temperature unit
BSVT, BCU 05
Probeheads
inverse broad-band probe with ATM module (5 mm PA BBI 1H/D-BB Z-GRD), broad-band probe (5 mm BBO-1H Z-GRD)
Workstation
Linux CentOS release 5.11, NMR software Topspin 3.2 pl 6
Sample handling
automatic sample changer B-ACS 120 with 120 holders

Location

Other instruments in this category

Bruker Avance III™ HD 850 MHz

The most powerful Institute' NMR spectrometer is equipped with a sensitive 5 mm helium-cryocooled probe and is primarily designed for bio-NMR studies in liquid phase. For example, it allows to study the structure of proteins, nucleic acids or complexes of small molecules with biomolecules.

Bruker Avance III™ HD 850 MHz
Bruker Avance III™ HD 600 MHz

The 600 MHz NMR spectrometer is used in the structural analysis of small molecules, but it also allows the study of protein structure. Designed for liquid phase measurements and equipped with 5 mm and 1.7 mm sensitive helium probes (this one is currently the most sensitive commercially available probe for microgram measurements) and an automatic 24 sample changer.

Bruker Avance III™ HD 600 MHz
Bruker Avance III™ HD 500 MHz

The 500 MHz spectrometer equipped with a 5 mm wide helium-cooled probe and an automatic 24-sample converter. It is used in structural analysis of small molecules.

Bruker Avance III™ HD 500 MHz
Bruker Avance III™ HD 400 MHz Prodigy

The 400 MHz NMR spectrometer equipped with a sensitive nitrogen cooled broadband 5 mm probe and an automatic sample changer of 60 samples. It is used as a routine spectrometer for self-service liquid phase NMR measurements.

Bruker Avance III™ HD 400 MHz Prodigy
Bruker AvanceNeo 500 MHz

500 MHz NMR spectrometer is used mainly for VT NMR (-150 to +150 °C), double decoupling experiments, reaction kinetics monitoring, and structural analysis of small molecules. It is also equipped with solid state NMR accessory.

Bruker AvanceNeo 500 MHz
JEOL JNM-ECZR 600 MHz

The 600 MHz NMR spectrometer is designed to measure solid state samples. Two 3.2 mm and 1 mm probes are used for the measurement, which differ both in the amount of the sample being measured and the sample rotation speed in the magnet. The sample in the 1 mm probe reaches a rotation speed of up to 80 kHz, allowing to measure 1H NMR spectra of high resolution solids.

JEOL JNM-ECZR 600 MHz
JEOL JNM-ECZR 500 MHz

The 500 MHz NMR spectrometer used for structural analysis of small molecules in liquid phase. It is equipped with a 5 mm wide wideband probe, allowing experiments requiring 1H and 19F double decoupling, and an automatic 24 sample changer.

JEOL JNM-ECZR 500 MHz
