Bruker Avance III™ HD 850 MHz

  • NMR Spectroscopy

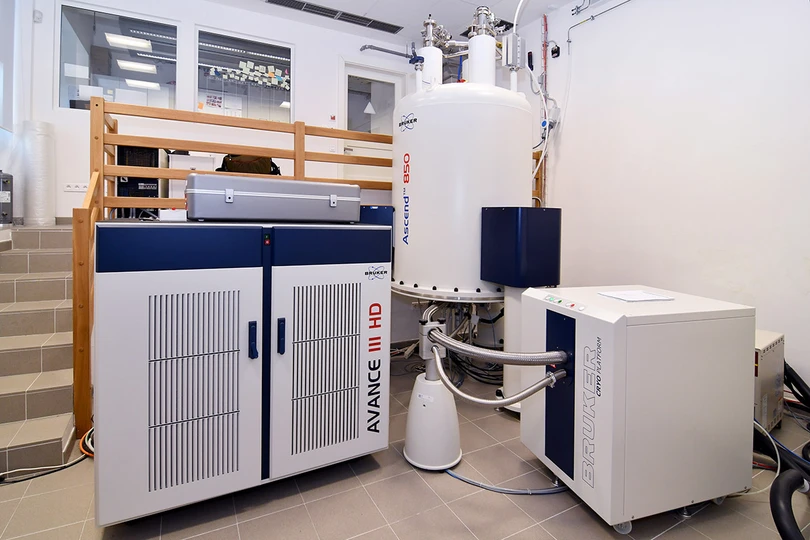

Image of Bruker Avance III™ HD 850 MHz

The most powerful Institute' NMR spectrometer is equipped with a sensitive 5 mm helium-cryocooled probe and is primarily designed for bio-NMR studies in liquid phase. For example, it allows to study the structure of proteins, nucleic acids or complexes of small molecules with biomolecules.

Technical specification

Magnet
Superconducting 850 MHz, Ascend™
Console
Avance III HD 850, three channels, BOSS III (36 magnetic field homogenity corrections), BSMS 2, amplifiers BLAXH2H 300/100 and BLAX 500
Bruker Cryoplatform
1H and 13C channels cooled
Temperature unit
BSVT, BCU 05
Probeheads
Inverse triple resonance cryo-probe with ATM module (5 mm CPTCI 1H/13C/15N/D Z-GRD)
Workstation
Linux CentOS release 5.11, NMR software Topspin 3.2 pl 6

Location
